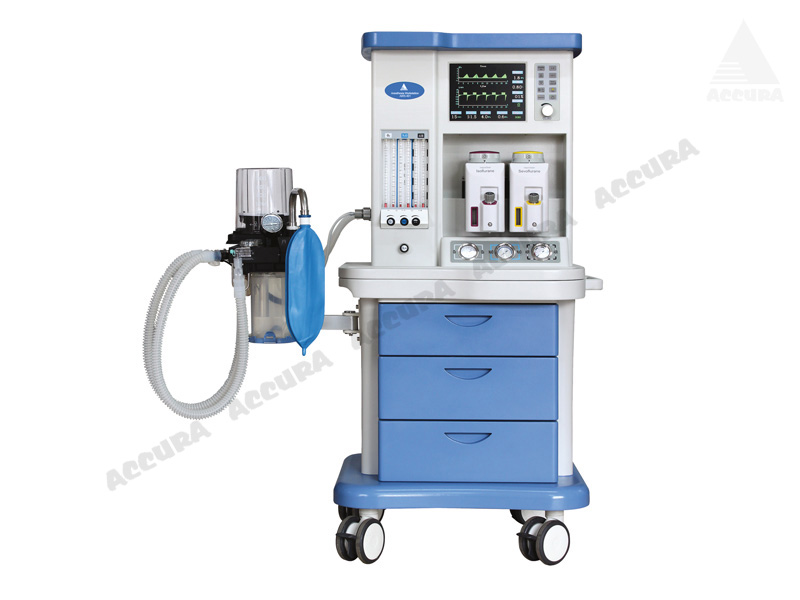

ANESTHESIA WORKSTATION
AWS- 401
> British Standard (02, N20, AIR)
> 10.4” TFT LCD screen
> Built-in Anesthesia Ventilator
> Continuous F102 monitoring
> Compact C02 absorber (autoclavable)
> Provision for Two vaporizers
> High precise vaporizer (Isoflurane I Sevoflurane I Enflurance I Halothane)
> Yoke system for 5L cylinders
> Selectable mounting vaporizer system
Anesthesia main unit:
• High resolution 10.4” colour TFT LCD screen
• Dual-end pressure flow sensor, The unit can monitor Tidal Volume, Respiratory
frequency,
airway pressure, pressure wave, flow wave (two-way), High Pressure limitation,
Low Pressure limitation,
Apnoea, Oxygen concentration under both two operating mode (Auto/Manual)
• Respiration loop function (Optional: scavenging system)
• Close, semi-close, semi-open system
• Application : Adult, Paediatric
• Low gas alarming : Alarming will be for more than 7 seconds.
• High pressure limitation: whenever airway pressure exceeds the pre-set
• High pressure, ventilator offers protection automatically, for the safety of the
patient.
• Low pressure protection : Once O2 pressure less than 0.1MPa, N20 gas supply stops automatically.
• Power failure alarm - automatically machine runs on USP
• 02 flush : 35 ~ 75 L/min
• Gas Pressure : O2 : 0.27~0.55 MPa, N20 : 0.27~0.55 MPa, AIR: 0.27~0.55 MPa
• Power : 220V±10%, 50Hz±1%; Backup USP Battery.
• Yoke system for O2 & N2O - 5 Ltr. Cylinders
Flow meter:
• O2, N2O, AIR - six tubes (0~10 L/min)
• O2/N2O inter-lock system, to keep O2 concentration not less than 25%
Anesthesia Ventilator (Air/O2 inter-link system):
• Adult, Paediatric bellows - 1 set each
• Pneumatic driven electric control
• Monitor Parameters : Tidal volume, Respiratory frequency, I:E rate,
Peak airway pressure, airway pressure waves etc.
• Working mode: Manual, Auto (IPPV, SIGH, SIMV/F/2, SIPPV, Optional ETCO2)
• Tidal volume : 0 ~ 1500 mL
• Respiratory frequency : 4 ~ 60 bpm
• I:E : 1:0.5 ~ 1:4 adjustable
• Synchronizer trigger Pressure : -1 ~ 0K Pa
• High pressure limitation : 2 ~ 6 KPa
• Low pressure limitation : O.6 ~ 2 KPa
Respiratory Circuit:
• Consolidated compact CO2 absorber (autoclavable)
Vaporizer:
• High precise vaporizer (Enflurane/Halothane/Isoflurane/Sevoflurane)
• Adjustable range : 0.5~5% VOL
• Automatic compensation function — flow, pressure, temperature
• Self-lock & inter-lock function
• Volume : 280 ml (Optional: 250 ml Penlon)
