ASPIRATOR

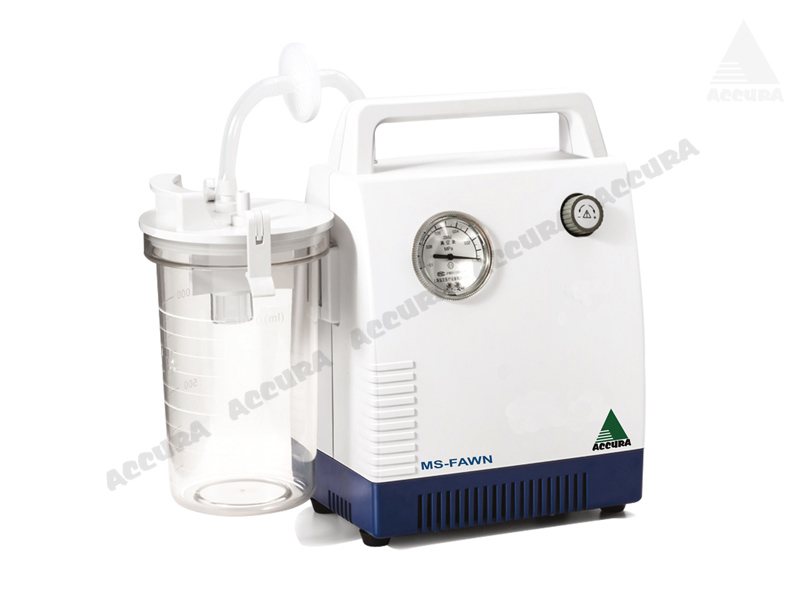

MS-FAWN

MS-FAWN with slim and elegant look has a compact cabinet. Useful for emergency treatment and first aid services. Recommended for social health
service centers because of its portability and mobility.

Salient Features:
• Oil free vacuum source fitted with a maintenance free piston cylinder pump.
• Ergonomically designed ABS body cover
• Compact size wide mouth polycarbonate jar with stopper and silicon seal ring. convenient to open and clean
• The overflow protection device prevents liquid or solid particles from entering the intermediately tubing.
• Unique bacterial filter to prevent air borne contamination in sterile rooms.
• Compact and light weight, the unit cabinet is made of ABS plastic with handle for easy carrying

Specifications:
• Maximum Vacuum : ≥ 0.09 MPa (680 mmHg)
• Adjustable Range : 150 mmHg Max. Vacuum
• Flow Rate : ≥ 22 LPM
• Noise : ≤ 60 dB(A)
• Storage Bottle : 1000 ml x 1 (Polycarbonate jar)
• Power Supply : 220V, ±10%, 50 Hz
• Input Power (VA) : 110
• Weight : GW - 5Kg,NW - 4Kg
• Dimensions : 405 x 200 x 360 mm
